Plasma cutter
COMPACT AHGOW

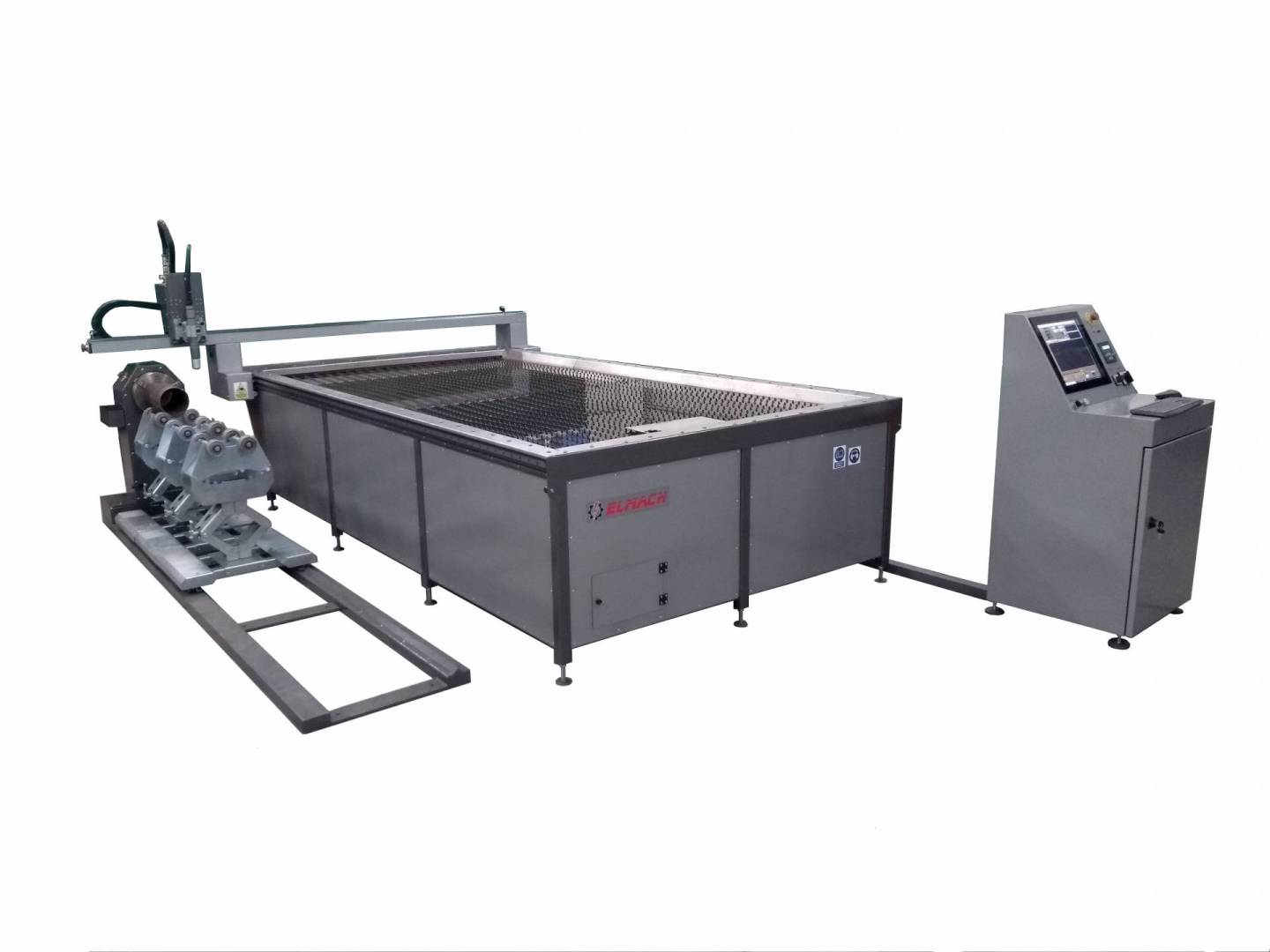

Elmach Compact AHGOW is a multi-purpose cutter with a water table, extended arm, and an additional rotary axis for cutting pipes and a gas burner. Via this table it is possible to cut very thin sheets from 0.4mm to even 40mm using a gas burner. The use of an extended arm and turntable for pipes enables cutting of various types of pipes.
Large-scale RHS cutting is also possible. The use of a water table with adjustable water level makes it possible to cut RHS partially plunged in water, this reduces the build-up of metallic deposits in the interior of the RHS
Parameters
- working area: X = from 1000 to 2200 mm, Y = from 2000 to 6000 mm
- cutting speed up to 20 m / min
- movement speed up to 30 m / min
- plasma cutting thickness: 0.4 - 30 mm (depending of source type)
- cutting thickness with an oxygen torch: 6 - 30 mm
- repeatability +/- 0.1 mm
Software
The program used to control the operation of the cutter is intuitive and very easy to use.
Drawings of parts can be transferred using a USB drive, or via a network connection, or prepared Directly on the computer at the machine.
Standard equipment
- precise linear guides
- brushless servo motors
- distance of the torch from the material is controlled and set automatically for optimal cutting parameters.
- table with exchangeable bed.
- table with sectional gas extraction and extraction fan (we are using a combination of pneumatics flaps to extract smoke from sections that open only in the cutting area, therefore the exhaust gas extraction efficiency is very high.
- desktop with control electronics
- computer with software
- plasma cutting systems, including sources top brands Hypertherm® Kjellberg Finsterwalde®, Thermal Dynamics
- magnetic anti-collision torch handle
- program for distributing details on a sheet (CAM)
Optional equipment
- gas system with burner, Perun burner, Harris®, Koike®, GCE, etc.
- laser cross lines for better placing the burner on a metal plate
- specialized program for placing details on a sheet, e.g. CutLeader, Wrykrys,
- fume extractor
- compressor
- plasma marking module
- module for cutting with water mist cover
- table with a compressed air - adjustable water level
- table without water level adjustment.
Control software features
- easy to use
- friendly interface with full visualization of the cutting process
- import of DXF, ESSI files
- stopping and restarting the machine from any moment of the cutting proces
- the ability to change cutting parameters during operation
- security system protecting against exceeding the permissible sizes
- sheet metal correction
- database of cutting parameters
- remote diagnostics
