Plasma cutter

COMPACT AHG

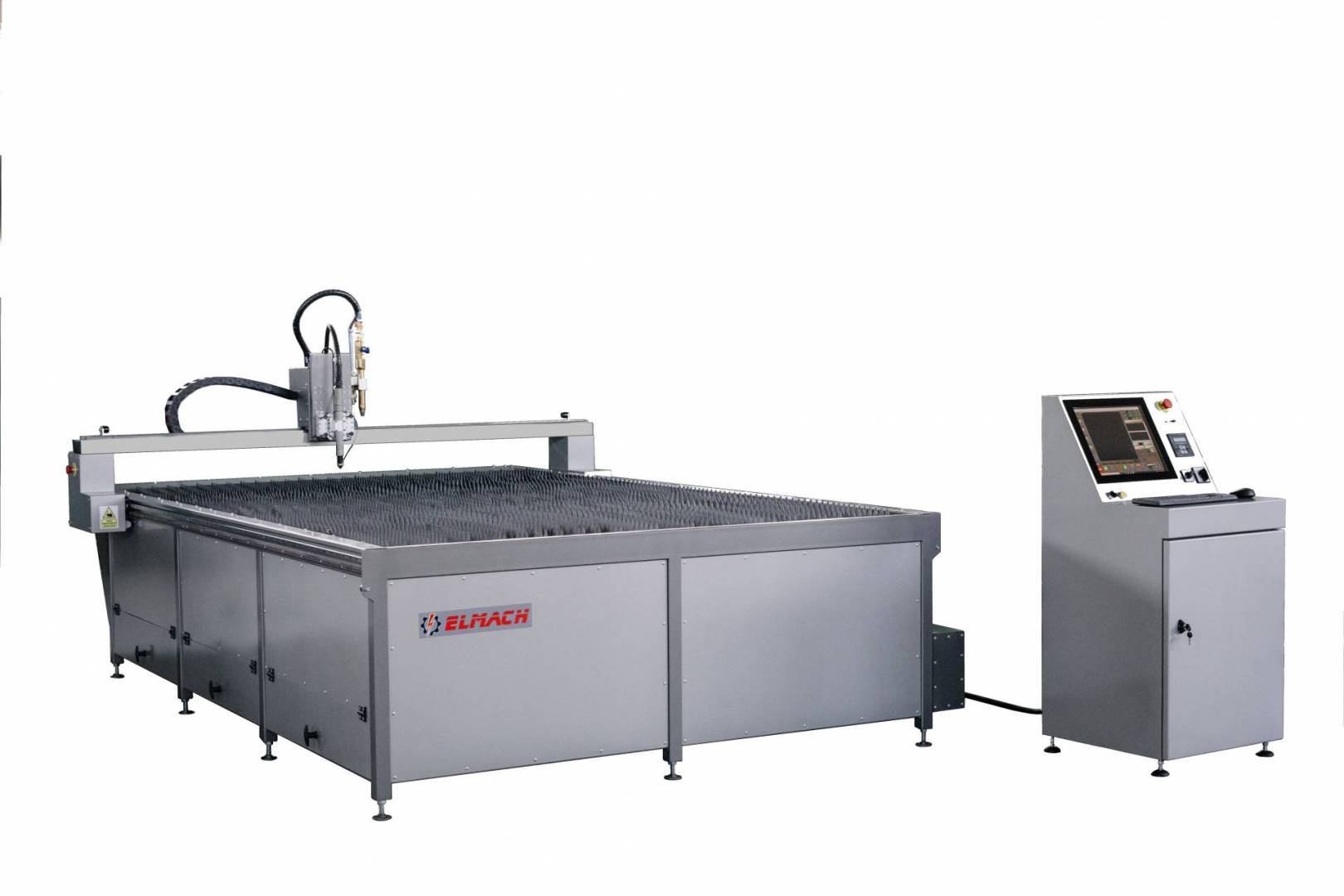

Elmach Compact AHG has been created for high performance plasma and oxygen cutters with a wide range of applications.

On this cutter it is possible to cut via plasma, very thin sheets from 0.4mm to even 40mm when using a gas torch.

Via a plasma torch, we can cut thin sheets very quickly and precisely, and when apply a gas burner, we obtain very good quality cutting of metal sheet above 15mm.

The combination of plasma and gas torches results in very good cutting results for steel sheets in a very wide range of thicknesses. It also reducing operating costs. When using a gas burner we do not need a high power electrical connection even to cut thickest sheets. The table can be equipped with additional functions to extend its operation.

Parameters Movies

Parameters

working area: X = from 1000 to 2200 mm, Y = from 2000 to 6000 mm
cutting speed up to 20 m / min
movement speed up to 30 m / min
plasma cutting thickness: 0.4 - 30 mm (depending of source type)
cutting thickness with an oxygen torch: 6 - 30 mm
repeatability +/- 0.1 mm

Software

The program used to control the operation of the cutter is intuitive and very easy to use.

Drawings of parts can be transferred using a USB drive, or via a network connection, or prepared Directly on the computer at the machine.

Standard equipment

precise linear guides
brushless servo motors
distance of the torch from the material is controlled and set automatically for optimal cutting parameters.
table with exchangeable bed
table with sectional gas extraction and extraction fan (we are using a combination of pneumatics flaps to extract smoke from sections that open only in the cutting area, therefore the exhaust gas extraction efficiency is very high.
desktop with control electronics
computer with software
plasma cutting systems, including sources top brands Hypertherm® Kjellberg Finsterwalde®, Thermal Dynamics
magnetic anti-collision torch handle
program for distributing details on a sheet (CAM)

Optional equipment

gas system with burner, Perun burner, Harris®, Koike®, GCE, etc.
laser cross lines for better placing the burner on a metal plate
specialized program for placing details on a sheet, e.g. CutLeader, Wrykrys,
fume extractor
compressor
plasma marking module
module for cutting with water mist cover
table with a compressed air - adjustable water level
table without water level adjustment.

Control software features

easy to use
friendly interface with full visualization of the cutting process
import of DXF, ESSI files
stopping and restarting the machine from any moment of the cutting proces
the ability to change cutting parameters during operation
security system protecting against exceeding the permissible sizes
sheet metal correction
database of cutting parameters
remote diagnostics
