Plasma cutter
COMPACT AHGO
Elmach Compact AHGO is a compact plasma cutter designed and created in response to the market demand of universal oxygen plasma cutters. The machine was built based on a modern control system that allows maximum use of the potential of this machine. By combining the smoothness of movements with the cutting optimization system and the highest quality plasma source, we have obtained the optimal performance of the machine.
The Elmach Compact cutter in its basic version is dedicated to cutting 0.4 - 30 mm sheets and cutting holes in RHS(Rectangular Hollow Sections ) without the use of a additional rotary axis.

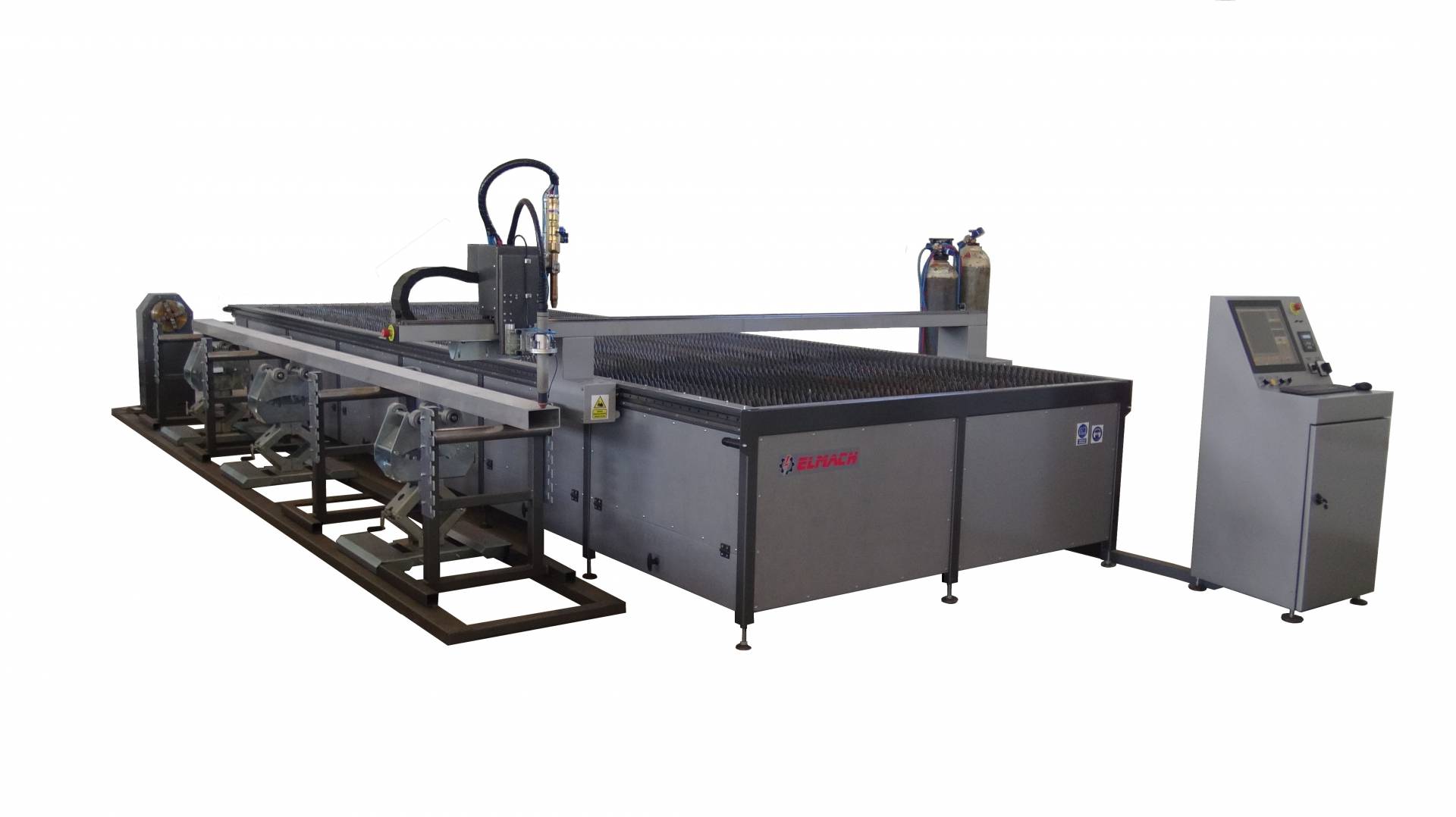

The machine can be configured with an extended arm and rotary axis for cutting pipes up to 800 mm in diameter.
The cutter can be equipped with a turntable for processing profiles and pipes. With an extended arm, it is possible to cut holes in large RHS, cutting out is possible next to the work table.
Parameters
- working area: X = from 1000 to 2200 mm, Y = from 2000 to 6000 mm
- cutting speed up to 20 m / min
- movement speed up to 30 m / min
- plasma cutting thickness: 0.4 - 30 mm (depending of source type)
- cutting thickness with an oxygen torch: 6 - 30 mm
- repeatability +/- 0.1 mm
Software
The program used to control the operation of the cutter is intuitive and very easy to use.
Drawings of parts can be transferred using a USB drive, or via a network connection, or prepared Directly on the computer at the machine.
Standard equipment
- precise linear guides
- brushless servo motors
- distance of the torch from the material is controlled and set automatically for optimal cutting parameters.
- table with exchangeable bed.
- table with sectional gas extraction and extraction fan (we are using a combination of pneumatics flaps to extract smoke from sections that open only in the cutting area, therefore the exhaust gas extraction efficiency is very high.
- desktop with control electronics
- computer with software
- plasma cutting systems, including sources top brands Hypertherm® Kjellberg Finsterwalde®, Thermal Dynamics
- magnetic anti-collision torch handle
- program for distributing details on a sheet (CAM)
Optional equipment
- gas system with burner, Perun burner, Harris®, Koike®, GCE, etc.
- laser cross lines for better placing the burner on a metal plate
- specialized program for placing details on a sheet, e.g. CutLeader, Wrykrys,
- fume extractor
- compressor
- plasma marking module
- module for cutting with water mist cover
- table with a compressed air - adjustable water level
- table without water level adjustment.
Control software features
- easy to use
- friendly interface with full visualization of the cutting process
- import of DXF, ESSI files
- stopping and restarting the machine from any moment of the cutting proces
- the ability to change cutting parameters during operation
- security system protecting against exceeding the permissible sizes
- sheet metal correction
- database of cutting parameters
- remote diagnostics
