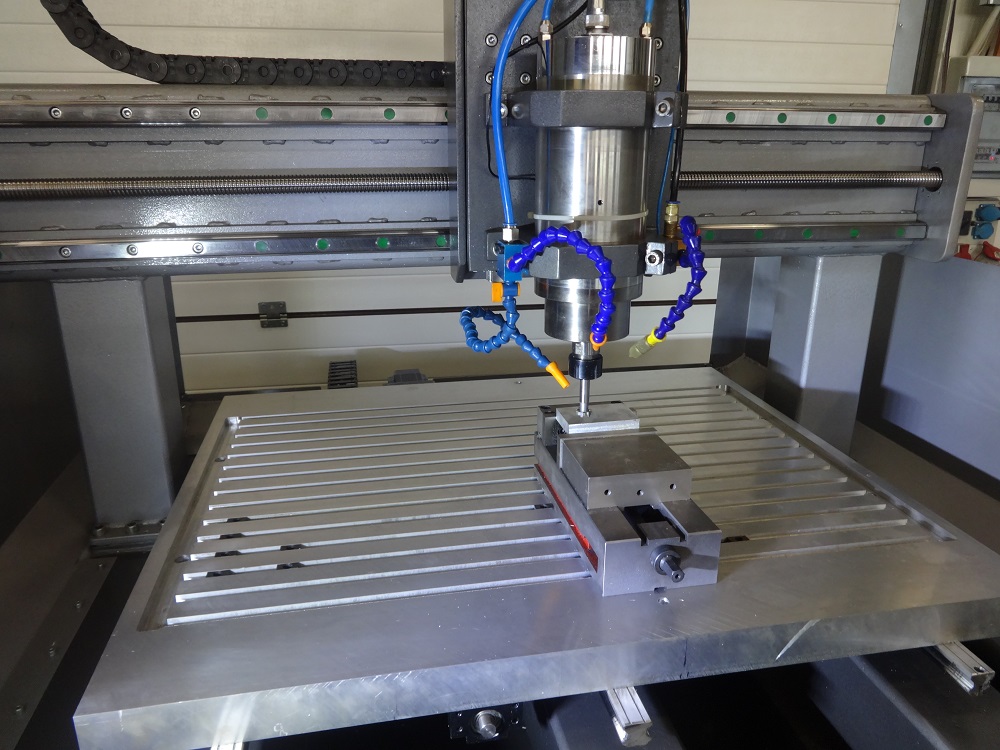

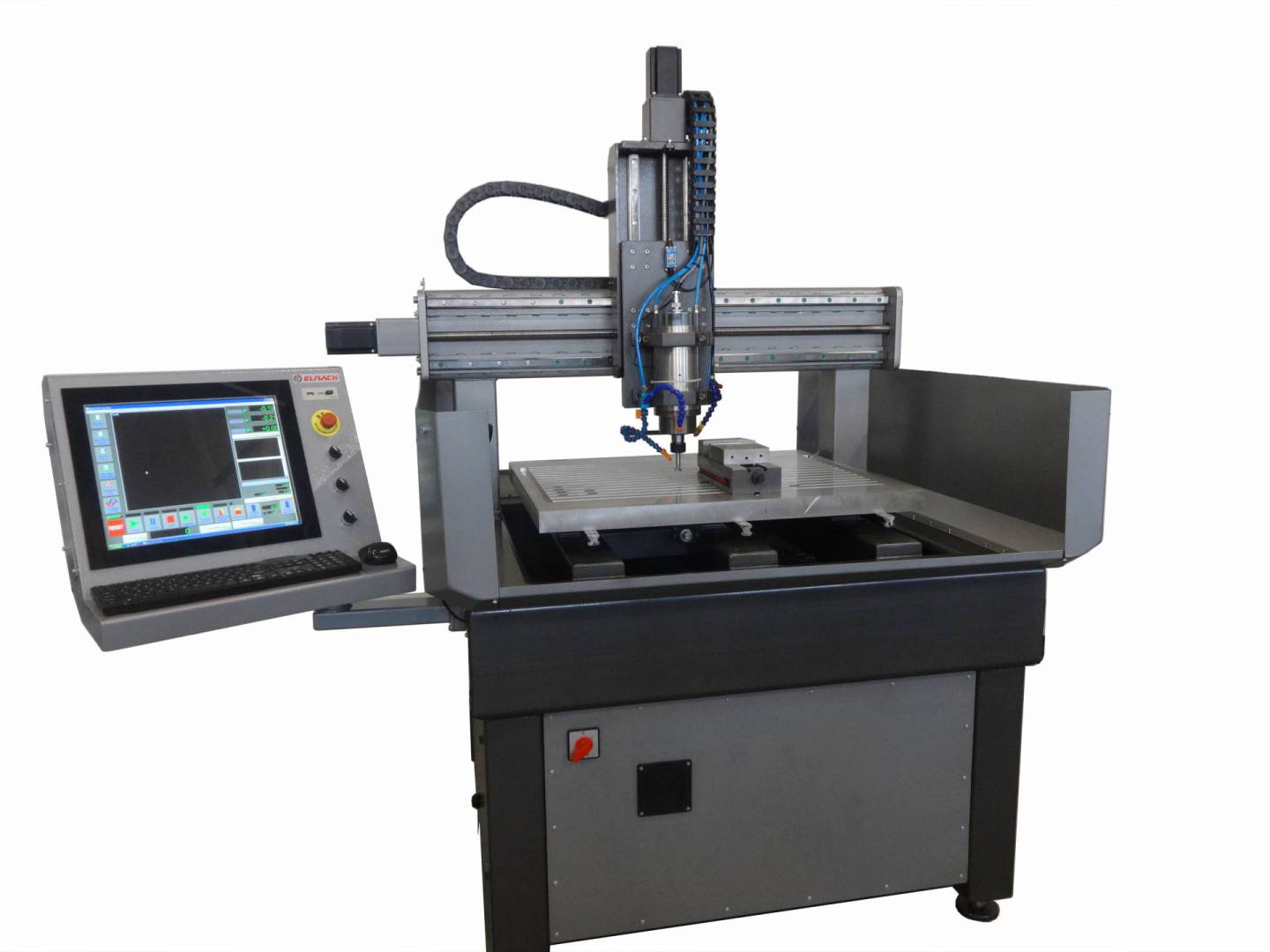

Milling machine
parameters:
working area: X = 900, Y = 550, Z = 300 mm
- spindle speed: 24,000 rpm; 5.5 kW
- T-slot table
- working speed up to 3000 mm / min
- machining accuracy +/- 0.02 mm
- precision HIVIN guides
- servo drives and ball screws
- tool length sensor
- own machine control program
Optional equipment:
- servo motors instead of stepper servos
- spindle speed: 24,000 rpm
- liquid-cooled spindle
- automatic tool change system
- specialized program for the distribution of details on the sheet and optimization of the use of material,
- drilling head
- tool cooling system with cold air
- other dimensions of the work area
- guides and screws with increased load capacity
- vacuum cleaner with extraction system
- vacuum table
The program used to control the operation of the machine is intuitive and very easy to use.
Drawings of parts can be transferred using a USB drive, or via a network connection, or prepared directly on the computer at the machine.
Control software features
- easy to use
- friendly interface with full visualization of the cutting process
- import of DXF, PLT, G-code files
- stopping and restarting the machine from any moment of the cutting proces
- the ability to change cutting parameters during operation
- security system against exceeding the allowable size of the detail
- generators helpful for milling
- simple distribution of details on the sheet
- machining optimization
