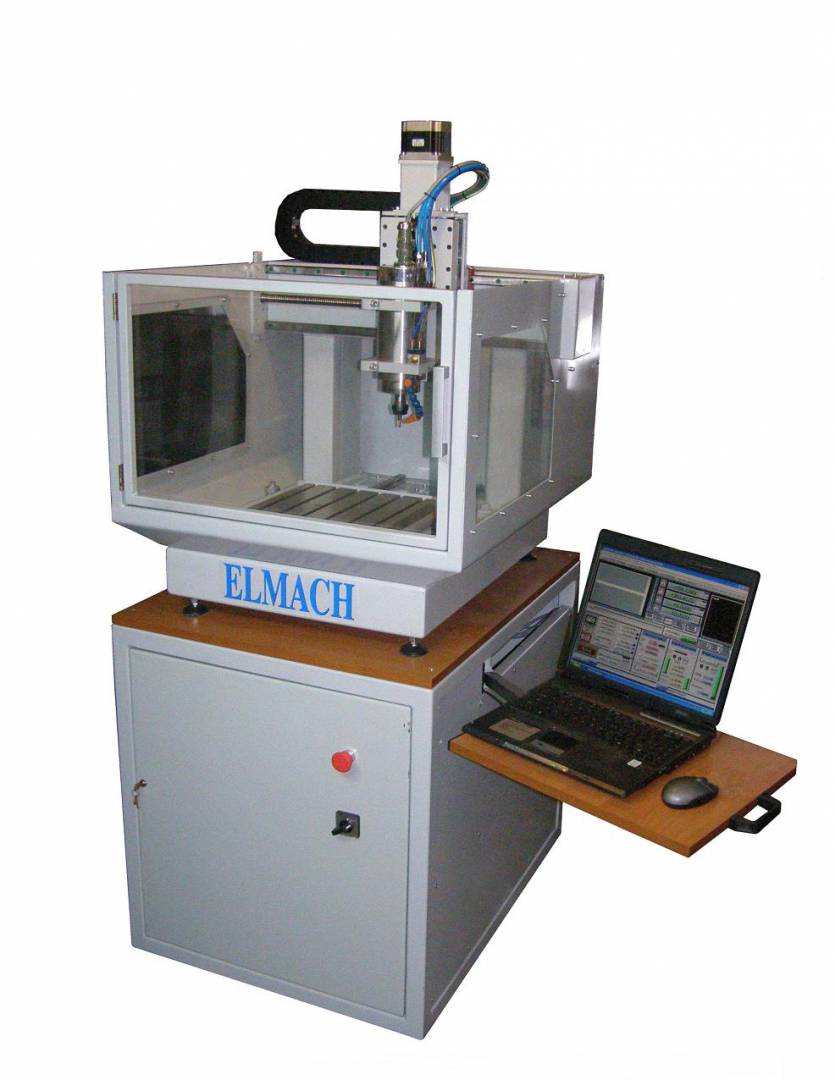

Milling machine
Model: FHF 2.2 / 400/400
Milling plotters from the Compact series are professional precision devices designed for processing small-size materials such as soft metals, composites, plastics, solid wood, wood-based materials, etc.
CNC milling machines from this line have a compact construction, high rigidity, friendly interface, precise mechanical elements, dynamic servomotors, and professional brushless milling spindles, powered by inverters, which reducing to minimum spindle noise even at high speeds, these inverters are precise and have high efficiency. Each our CNC machine works in full 3 axes (3D)and can be configured individually depending on the needs.
Specification:
- Working area 400x400mm x150mm
- Fixed gate system with a movable table
- Frame construction made of thick RHS with high rigidity
- Max milling speed 6m / min
- Idle speed up to 10,000 mm / min
- Hybrid motors and ball screws are used for the drive
- Hivin linear guides
- Communication of the machine with the control computer via -LPT / LAN
- Electric-cooled spindle 2.2 [kW] 24000 rev / min.*Inverter regulation of spindle speed
- Spindle speed adjustment from a computer
- Tool height sensor
- Aluminum T-slot table
